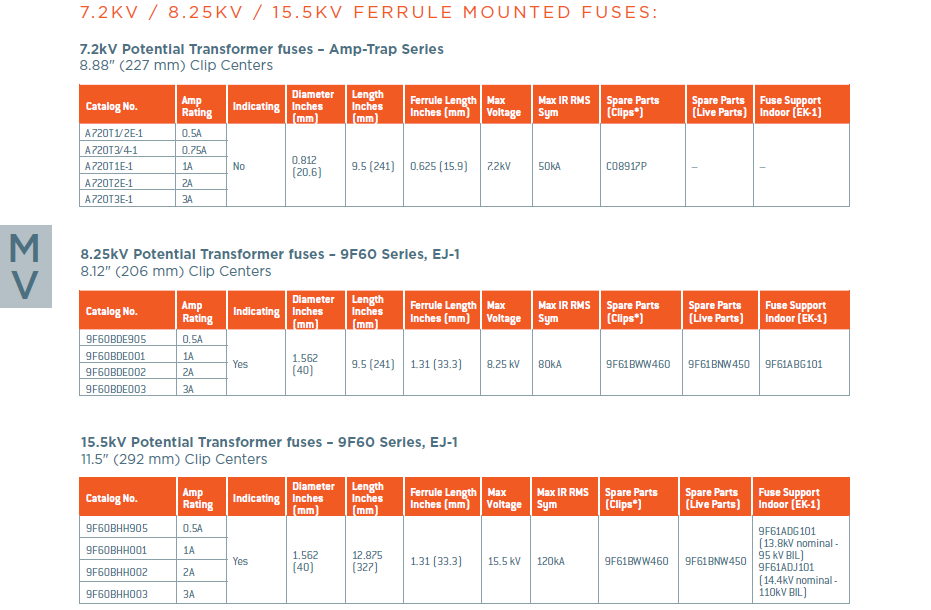

0.625KV – 2.4KV – 2.75KV – 4.8KV – 5.0KV – 5.5KV – 7.2KV – 8.25KV AND 15.5KV FERRULE MOUNTED FUSES

Mersen PT fuses are current-limiting fuses with high interrupting
rating, used for the primary winding protection of potential
transformer. They are small dimension ferrule type fuses and mount in
standard clips. Current ratings are from 0.25A to 5A.

FEATURES/BENEFITS :
? Ferrule mounting for standard clips and interchangeability with
other brands of fuses.
? Current-limiting for superior equipment protection.
? Non-venting for silent operation.
? Metal embossed catalog number and manufacturing date for
lasting identification.
? Blown-fuse indicator to give positive identification of open fuse
fuse is available on the 9F60 series.
